limited production, superlative,
time coherent, phase coherent, resonance coherent

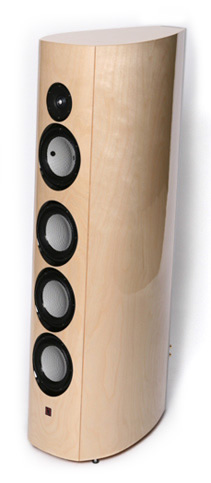

5 driver, 3 way reference monitors

frequency response 30 hz - 47 khz / -3db
sensitivity 92 db (1w @1 meter), impedance 6 ohm
recommended amplification 20 - 200 watt

driver array

1" custom ring radiator tweeter
6.5" custom ceramic inverted dome midrange
3 x 7" custom ceramic inverted dome woofers
precision matched and resonance tuned

cabinet design

instrument grade, flow and pressure dynamically optimized.
separate, driver-specific internal midrange enclosure.

tone wood based, resonance-unified materials, bonding and construction.
advanced self damping geometry with integrated resonance grounding path.

sound dispersion and reflection optimized, time aligned, baffle design.

cabinet finish

figuered maple, macassar ebony, indian cherry or piano black
multi layer, high gloss, lacquer finish.

additional veneer, finish and color options
available on request

signal path

single wire, tone wood terminals, wbt hardware

wire directivity oriented internal cable routing

single crystal wire, application specific variable size conductors.

micro distortion free, electrostatics resistant, insulation technology,
prevents micro-discharge and eletrostatics driven electro chemical
cable performance degeneration.


proprietary "harmonic lengths" cable technology:
all conductors, independent of their technology, perform best
at a specific, tightly defined length.

product dimensions

height 124.5 cm, width 32.5 cm, depth 56 cm, weight 72 kg each

shipping dimensions, crated

height 140 cm, width 70 cm, depth 44 cm, weight 90 kg each


download the "aquila™" brochure as .pdf file

we reserve the right to change product specifications without
prior notice to enhance their quality and performance.
